Scalable RAG ingestion pipeline using 74.3% less code
End-to-end implementation for an advanced RAG feature pipeline
→ the 1st lesson of the Superlinked bonus series from the LLM Twin free course
Why is this course different?
By finishing the “LLM Twin: Building Your Production-Ready AI Replica” free course, you will learn how to design, train, and deploy a production-ready LLM twin of yourself powered by LLMs, vector DBs, and LLMOps good practices.
Why should you care? 🫵
→ No more isolated scripts or Notebooks! Learn production ML by building and deploying an end-to-end production-grade LLM system.
More details on what you will learn within the LLM Twin course, here 👈
Latest lessons of the LLM Twin course
Lesson 8: Best practices when evaluating fine-tuned LLM models
→ Quantitative/Qualitative Evaluation Metrics, Human-in-the-Loop, LLM-Eval
Lesson 9: Architect scalable and cost-effective LLM & RAG inference pipelines
→Monolithic vs. microservice, Qwak Deployment, RAG Pipeline Walkthrough
Lesson 10: How to evaluate your RAG using RAGAs Framework
→ RAG evaluation best practic, RAGAs framework
Lesson 11: Build a scalable RAG ingestion pipeline using 74.3% less code
Lessons 11 and 12 are part of a bonus series in which we will take the advanced RAG system from the LLM Twin course (written in LangChain) and refactor it using Superlinked, a framework specialized in vector computing for information retrieval.
In Lesson 11 (this article), we will learn to build a highly scalable, real-time RAG feature pipeline that ingests multi-data categories into a Redis vector database.
More concretely we will take the ingestion pipeline implemented in Lesson 4 and swap the chunking, embedding, and vector DB logic with Superlinked.
You don’t have to read Lesson 4 to read this article. We will give enough context to make sense of it.
In the 12th lesson, we will use Superlinked to implement a multi-index query strategy and further optimize the advanced RAG retrieval module (initially built in Lesson 5).
The value of this article lies in understanding how easy it is to build complex advanced RAG systems using Superlinked.
Using Superlinked, we reduced the number of RAG-related lines of code by 74.3%. Powerful, right?
By the end of this article, you will learn to build a production-ready feature pipeline built in Superlinked that:
uses Bytewax as a stream engine to process data in real-time;
ingests multiple data categories from a RabbitMQ queue;
validates the data with Pydantic;
chunks, and embeds data using Superlinked for doing RAG;
loads the embedded vectors along their metadata to a Redis vector DB;
Ultimately, on the infrastructure side, we will show you how to deploy a Superlinked vector compute server.
Quick intro in feature pipelines
The feature pipeline is the first pipeline presented in the FTI pipeline architecture: feature, training and inference pipelines.
A feature pipeline takes raw data as input, processes it into features, and stores it in a feature store, from which the training & inference pipelines will use it.
The component is completely isolated from the training and inference code. All the communication is done through the feature store.
To avoid repeating myself, if you are unfamiliar with the FTI pipeline architecture, check out Lesson 1 for a refresher.
Table of Contents
What is Superlinked?
The old architecture of the RAG feature pipeline
The new Superlinked architecture of the RAG feature pipeline
Understanding the streaming flow for real-time processing
Loading data to Superlinked
Exploring the RAG Superlinked server
Using Redis as a vector DB
🔗 Check out the code on GitHub [1] and support us with a
1. What is Superlinked?
Superlinked is a computing framework for turning complex data into vectors.
It lets you quickly build multimodal vectors and define weights at query time, so you don’t need a custom reranking algorithm to optimize results.
It’s focused on turning complex data into vector embeddings within your RAG, Search, RecSys and Analytics stack.
I love how Daniel Svonava, the CEO of Superlinked, described the value of vector compute and implicitly Superlinked:
Daniel Svonava, CEO at Superlinked:
“Vectors power most of what you already do online — hailing a cab, finding a funny video, getting a date, scrolling through a feed or paying with a tap. And yet, building production systems powered by vectors is still too hard! Our goal is to help enterprises put vectors at the center of their data & compute infrastructure, to build smarter and more reliable software.”
To conclude, Superlinked is a framework that puts the vectors in the center of their universe and allows you to:
chunk and embed embeddings;
store multi-index vectors in a vector DB;
do complex vector search queries on top of your data.

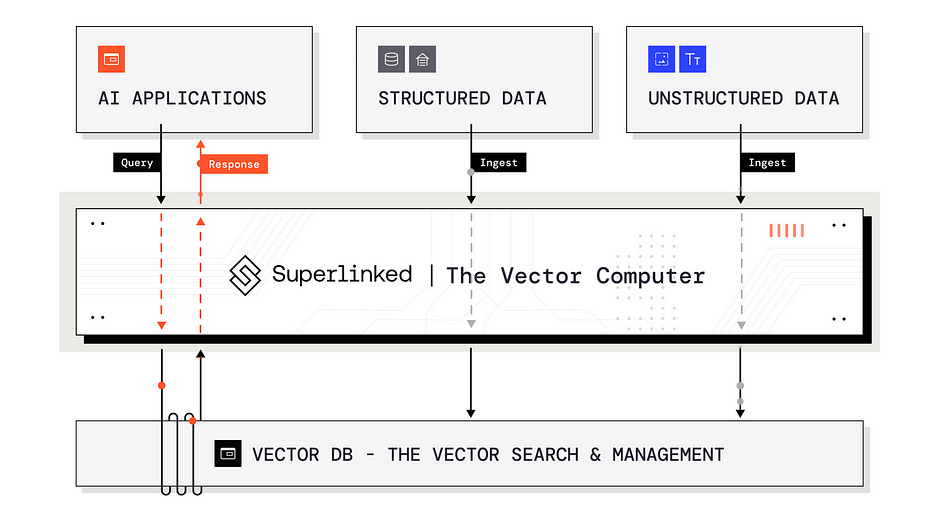

Screenshot from Superlinked’s landing page
2. The old architecture of the RAG feature pipeline

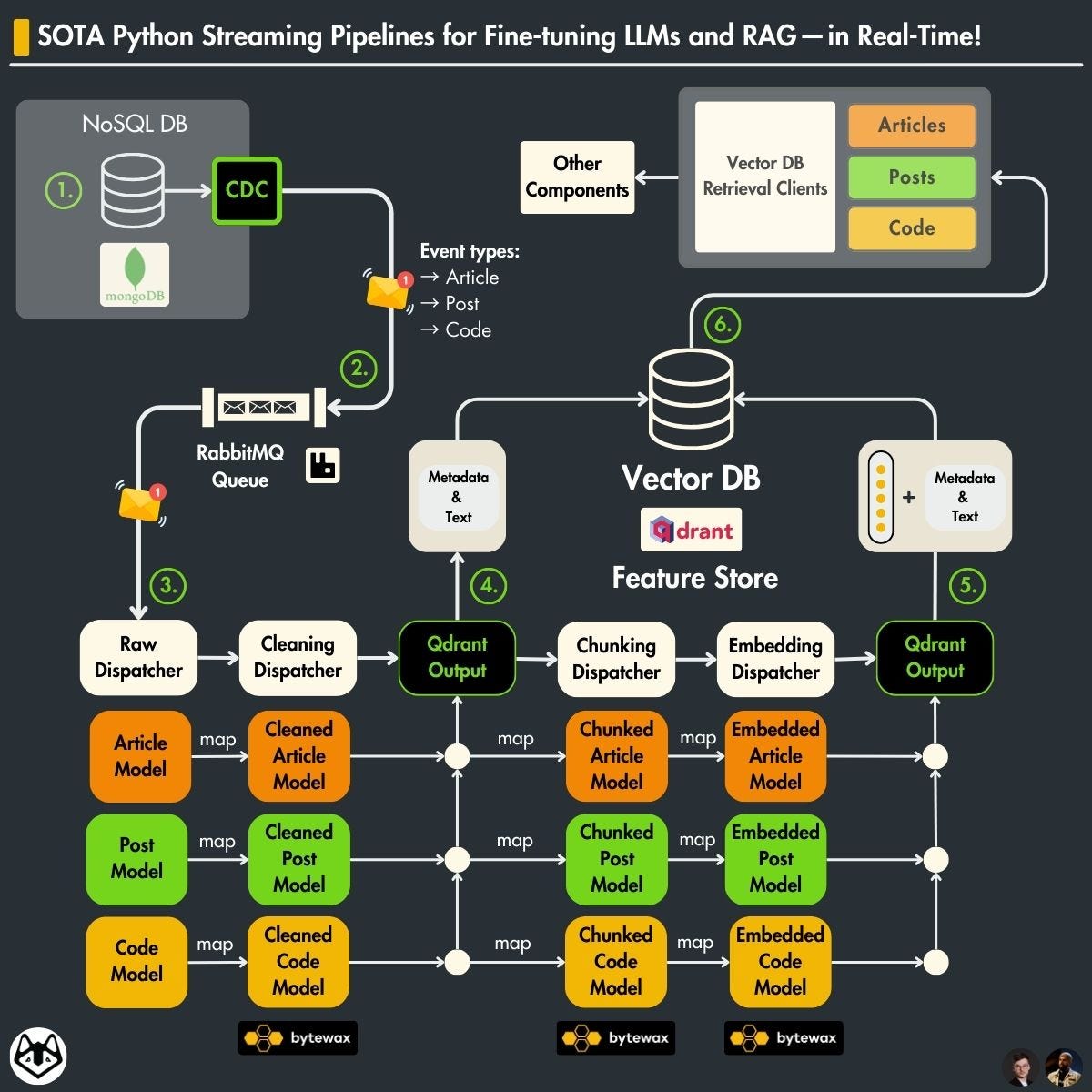

Here is a quick recap of the critical aspects of the architecture of the RAG feature pipeline presented in the 4th lesson of the LLM Twin course.
We are working with 3 different data categories:
posts (e.g., LinkedIn, Twitter)
articles (e.g., Medium, Substack, or any other blog)
repositories (e.g., GitHub, GitLab)
Every data category has to be preprocessed differently. For example, you want to chunk the posts into smaller documents while keeping the articles in bigger ones.
The solution is based on CDC, a queue, a streaming engine, and a vector DB:
-> The raw data is collected from multiple social platforms and is stored in MongoDB. (Lesson 2)
→ CDC adds any change made to the MongoDB to a RabbitMQ queue (Lesson 3).
→ the RabbitMQ queue stores all the events until they are processed.
→ The Bytewax streaming engine reads the messages from the RabbitMQ queue and cleans, chunks, and embeds them.
→ The processed data is uploaded to a Qdrant vector DB.
Why is this design robust?
Here are 4 core reasons:
The data is processed in real-time.
Out-of-the-box recovery system: If the streaming pipeline fails to process a message, it will be added back to the queue
Lightweight: No need for any diffs between databases or batching too many records
No I/O bottlenecks on the source database
What is the issue with this design?
In this architecture, we had to write custom logic to chunk, embed, and load the data to Qdrant.
The issue with this approach is that we had to leverage various libraries, such as LangChain and unstructured, to get the job done.
Also, because we have 3 data categories, we had to write a dispatcher layer that calls the right function depending on its category, which resulted in tons of boilerplate code.
Ultimately, as the chunking and embedding logic is implemented directly in the streaming pipeline, it is harder to scale horizontally. The embedding algorithm needs powerful GPU machines, while the rest of the operations require a strong CPU.
This results in:
more time spent on development;
more code to maintain;
the code can quickly become less readable;
less freedom to scale.
Superlinked can speed up this process by providing a very intuitive and powerful Python API that can speed up the development of our ingestion and retrieval logic.
Thus, let’s see how to redesign the architecture using Superlinked ↓
3. The new Superlinked architecture of the RAG feature pipeline
The core idea of the architecture will be the same. We still want to:
use a Bytewax streaming engine for real-time processing;
read new events from RabbitMQ;
clean, chunk, and embed the new incoming raw data;
load the processed data to a vector DB.
The question is, how will we do this with Superlinked?

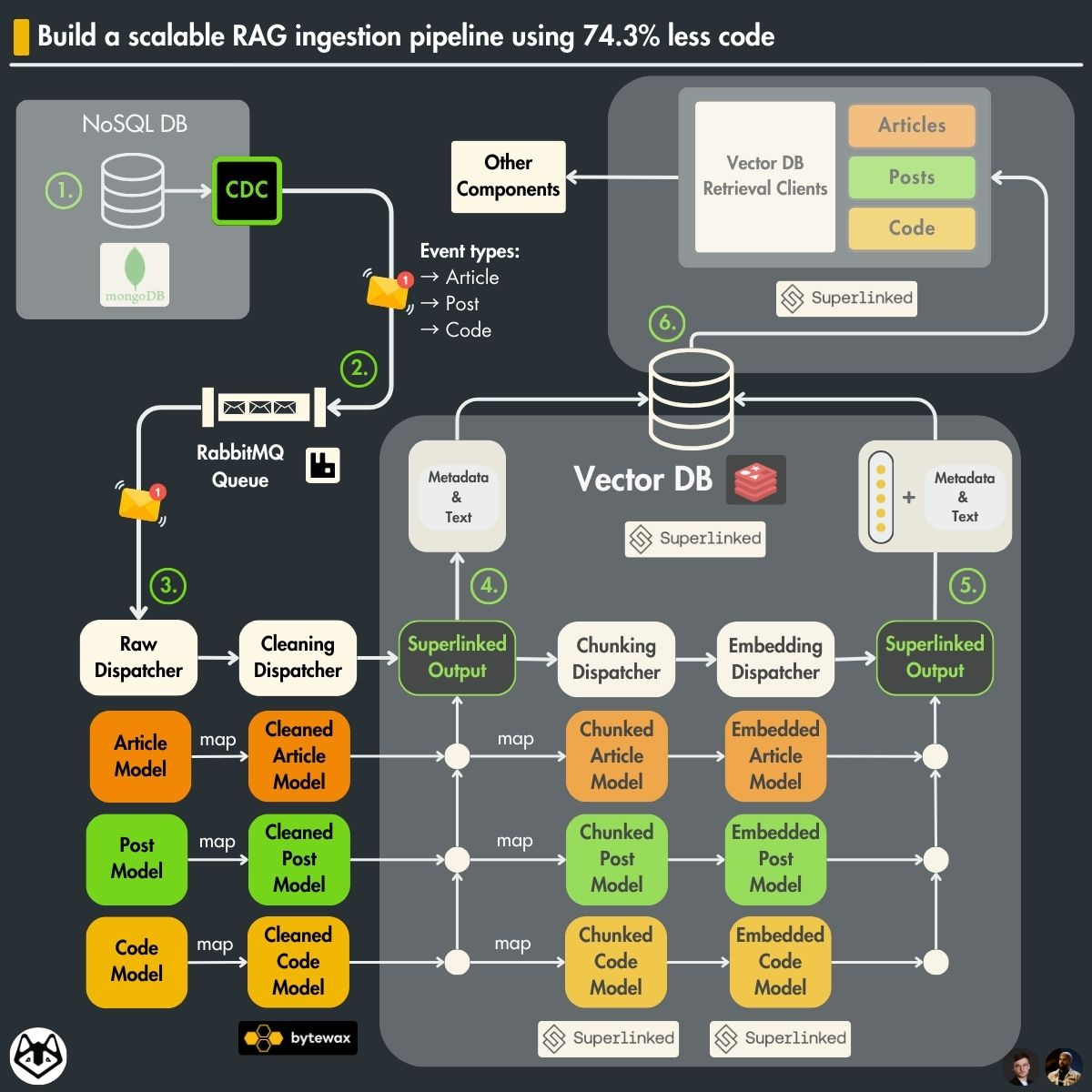

As you can see in the image below, Superlinked will replace the logic for the following operations:
chunking;
embedding;
vector storage;
queries.
Also, we have to swap Qdrant with a Redis vector DB because Superlinked didn’t support Qdrant when I wrote this article. But they plan to add it in future months (along with many other vector DBs).
What will remain unchanged are the following:
the Bytewax streaming layer;
the RabbitMQ queue ingestion component;
the cleaning logic.
By seeing what we must change to the architecture to integrate Superlinked, we can see the framework’s core features.

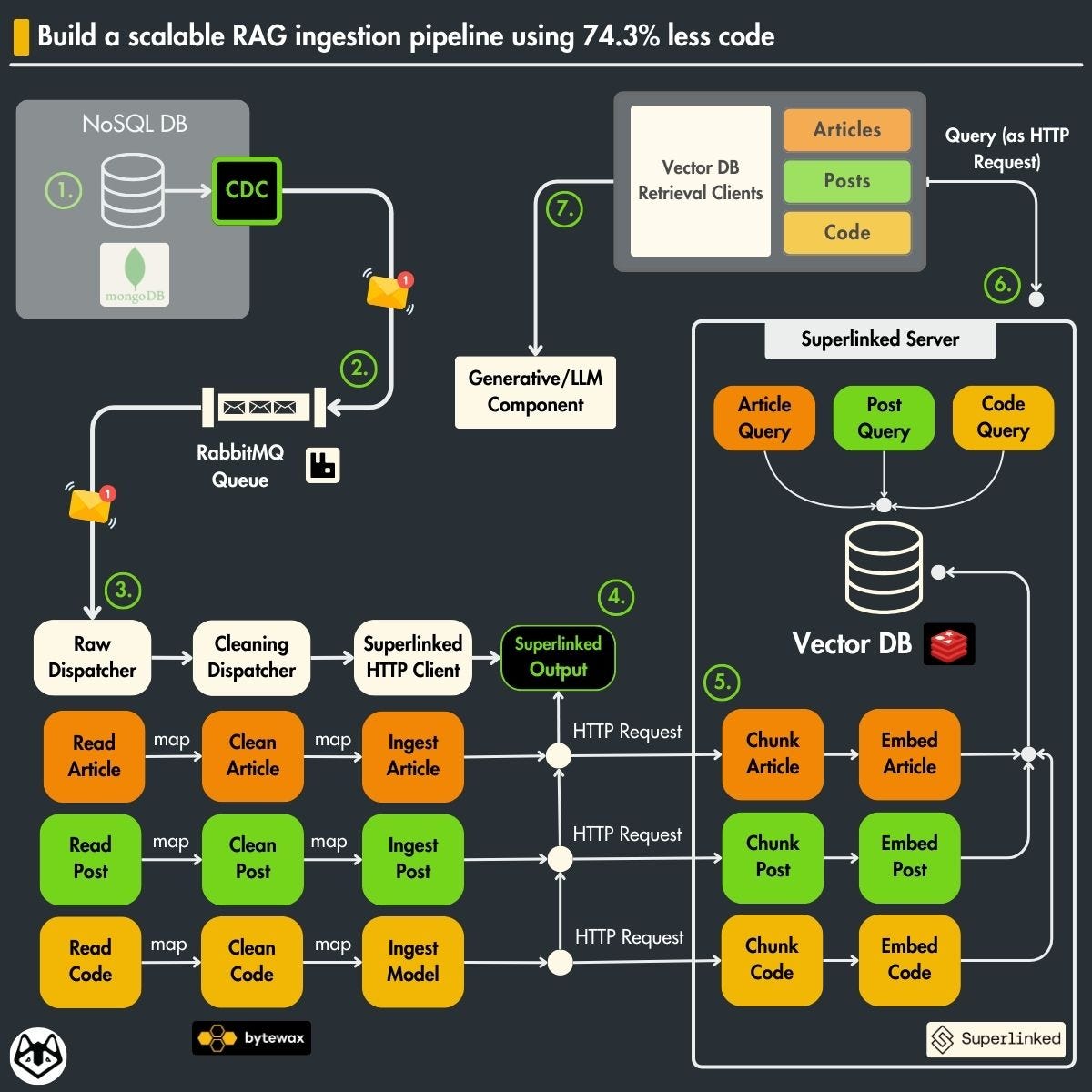

Now, let’s take a deeper look at the new architecture.
All the Superlinked logic will sit on its own server, completely decoupling the vector compute component from the rest of the feature pipeline.
We can quickly scale the streaming pipeline or the Superlinked server horizontally based on our needs. Also, this makes it easier to run the embedding models (from Superlinked) on a machine with a powerful GPU while keeping the streaming pipeline on a machine optimized for network I/O operations.
All the communication to Superlinked (ingesting or query data) will be done through a REST API, automatically generated based on the schemas and queries you define in your Superlinked application.
The Bytewax streaming pipeline will perform the following operations:
will concurrently read messages from RabbitMQ;
clean each message based on it’s data category;
send the cleaned document to the Superlinked server through an HTTP request.
On the Superlinked server side, we have defined an ingestion endpoint for each data category (article, post or code). Each endpoint will know how to chunk embed and store every data point based on its category.
Also, we have a query endpoint (automatically generated) for each data category that will take care of embedding the query and perform a vector semantic search operation to retrieve similar results.
Now, let’s finally jump into the code ↓
4. Understanding the streaming flow for real-time processing
The Bytewax flow is the central point of the streaming pipeline. It defines all the required steps, following the next simplified pattern: “input -> processing -> output”.
Here is the Bytewax flow and its core steps ↓
flow = Dataflow("Streaming RAG feature pipeline")
stream = op.input("input", flow, RabbitMQSource())
stream = op.map("raw", stream, RawDispatcher.handle_mq_message)
stream = op.map("clean", stream, CleaningDispatcher.dispatch_cleaner)
op.output(
"superlinked_output",
stream,
SuperlinkedOutputSink(client=SuperlinkedClient()),
)5. Loading data to Superlinked
Before we explore the Superlinked application, let’s review our Bytewax SuperlinkedOutputSink() and SuperlinkedClient() classes.
The purpose of the SuperlinkedOutputSink() class is to instantiate a new SuperlinkedSinkPartition() instance for each worker within the Bytewax cluster. Thus, we can optimize the system for I/O operations by scaling our output workers horizontally.
class SuperlinkedOutputSink(DynamicSink):
def __init__(self, client: SuperlinkedClient) -> None:
self._client = client
def build(self, worker_index: int, worker_count: int) -> StatelessSinkPartition:
return SuperlinkedSinkPartition(client=self._client)The SuperlinkedSinkPartition() class inherits the StatelessSinkPartition Bytewax base class used to create custom stateless partitions.
This class takes as input batches of items and sends them to Superlinked through the SuperlinkedClient().
class SuperlinkedSinkPartition(StatelessSinkPartition):
def __init__(self, client: SuperlinkedClient):
self._client = client
def write_batch(self, items: list[Document]) -> None:
for item in tqdm(items, desc="Sending items to Superlinked..."):
match item.type:
case "repositories":
self._client.ingest_repository(item)
case "posts":
self._client.ingest_post(item)
case "articles":
self._client.ingest_article(item)
case _:
logger.error(f"Unknown item type: {item.type}")The SuperlinkedClient() is a basic wrapper that makes HTTP requests to the Superlinked server that contains all the RAG logic. We use httpx to make POST requests for ingesting or searching data.
class SuperlinkedClient:
...
def ingest_repository(self, data: RepositoryDocument) -> None:
self.__ingest(f"{self.base_url}/api/v1/ingest/repository_schema", data)
def ingest_post(self, data: PostDocument) -> None:
self.__ingest(f"{self.base_url}/api/v1/ingest/post_schema", data)
def ingest_article(self, data: ArticleDocument) -> None:
self.__ingest(f"{self.base_url}/api/v1/ingest/article_schema", data)
def __ingest(self, url: str, data: T) -> None:
...
def search_repository(
self, search_query: str, platform: str, author_id: str, *, limit: int = 3
) -> list[RepositoryDocument]:
return self.__search(
f"{self.base_url}/api/v1/search/repository_query",
RepositoryDocument,
search_query,
platform,
author_id,
limit=limit,
)
def search_post(
self, search_query: str, platform: str, author_id: str, *, limit: int = 3
) -> list[PostDocument]:
... # URL: f"{self.base_url}/api/v1/search/post_query"
def search_article(
self, search_query: str, platform: str, author_id: str, *, limit: int = 3
) -> list[ArticleDocument]:
... # URL: f"{self.base_url}/api/v1/search/article_query"
def __search(
self, url: str, document_class: type[T], search_query: str, ...
) -> list[T]:
...
The Superlinked server URLs are automatically generated as follows:
the ingestion URLs are generated based on the data schemas you defined (e.g., repository schema, post schema, etc.)
the search URLs are created based on the Superlinked queries defined within the application
6. Exploring the RAG Superlinked server
As the RAG Superlinked server is a different component than the Bytewax one, the implementation sits under the server folder at 6-bonus-superlinked-rag/server/src/app.py.
Here is a step-by-step implementation of the Superlinked application ↓
Settings class
Use Pydantic settings to define a global configuration class.
class Settings(BaseSettings):
EMBEDDING_MODEL_ID: str = "sentence-transformers/all-mpnet-base-v2"
REDIS_HOSTNAME: str = "redis"
REDIS_PORT: int = 6379
settings = Settings()Schemas
Superlinked requires you to define your data structure through a set of schemas, which are very similar to data classes or Pydantic models.
Superlinked will use these schemas as ORMs to save your data to a specified vector DB.
It will also use them to define ingestion URLs automatically as POST HTTP methods that expect the request body to have the same signature as the schema.
Simple and effective. Cool, right?
@schema
class PostSchema:
id: IdField
platform: String
content: String
author_id: String
type: String
@schema
class ArticleSchema:
id: IdField
platform: String
link: String
content: String
author_id: String
type: String
@schema
class RepositorySchema:
id: IdField
platform: String
name: String
link: String
content: String
author_id: String
type: String
post = PostSchema()
article = ArticleSchema()
repository = RepositorySchema()Spaces
The spaces are where you define your chunking and embedding logic.
A space is scoped at the field of a schema. Thus, if you want to embed multiple attributes of a single schema, you must define multiple spaces and combine them later into a multi-index.
Let’s take the spaces for the article category as an example:
articles_space_content = TextSimilaritySpace(
text=chunk(article.content, chunk_size=500, chunk_overlap=50),
model=settings.EMBEDDING_MODEL_ID,
)
articles_space_plaform = CategoricalSimilaritySpace(
category_input=article.platform,
categories=["medium", "superlinked"],
negative_filter=-5.0,
)Chunking is done simply by calling the chunk() function on a given schema field and specifying standard parameters such as “chunk_size” and “chunk_overlap”.
The embedding is done through the TextSimilaritySpace() and CategoricalSimilaritySpace() classes.
As the name suggests, the TextSimilaritySpace() embeds text data using the model specified within the “model” parameter. It supports any HuggingFace model. We are using “sentence-transformers/all-mpnet-base-v2”.
The CategoricalSimilaritySpace() class uses an n-hot encoded vector with the option to apply a negative filter for unmatched categories, enhancing the distinction between matching and non-matching category items.
You must also specify all the available categories through the “categories” parameter to encode them in n-hot.
Indexes
The indexes define how a collection can be queried. They take one or multiple spaces from the same schema.
Here is what the article index looks like:
article_index = Index(
[articles_space_content, articles_space_plaform],
fields=[article.author_id],
)As you can see, the vector index combines the article’s content and the posted platform. When the article collection is queried, both embeddings will be considered.
Also, we index the “author_id” field to filter articles written by a specific author. It is nothing fancy—it is just a classic filter. However, indexing the fields used in filters is often good practice.
Queries
We will quickly introduce what a query looks like. But in the 14th lesson, we will insist on the advanced retrieval part, hence on queries.
Here is what the article query looks like:
article_query = (
Query(
article_index,
weights={
articles_space_content: Param("content_weight"),
articles_space_plaform: Param("platform_weight"),
},
)
.find(article)
.similar(articles_space_content.text, Param("search_query"))
.similar(articles_space_plaform.category, Param("platform"))
.filter(article.author_id == Param("author_id"))
.limit(Param("limit"))
)…and here is what it does:
it queries the article_index using a weighted multi-index between the content and platform vectors (e.g.,
0.9 * content_embedding + 0.1 * platform_embedding);the search text used to compute query content embedding is specified through the “search_query” parameter and similar for the platform embedding through the “platform” parameter;
we filter the results based on the “author_id”;
take only the top results using the “limit” parameter.
These parameters are automatically exposed on the REST API endpoint, as seen in the SuperlinkedClient() class.
Sources
The sources wrap the schemas and allow you to save that schema in the database.
In reality, the source maps the schema to an ORM and automatically generates REST API endpoints to ingest data points.
article_source = RestSource(article)Executor
The last step is to define the executor that wraps all the sources, indices, queries and vector DB into a single entity:
executor = RestExecutor(
sources=[article_source, repository_source, post_source],
indices=[article_index, repository_index, post_index],
queries=[
RestQuery(RestDescriptor("article_query"), article_query),
RestQuery(RestDescriptor("repository_query"), repository_query),
RestQuery(RestDescriptor("post_query"), post_query),
],
vector_database=InMemoryVectorDatabase(),
)
Now, the last step is to register the executor to the Superlinked engine:
SuperlinkedRegistry.register(executor)…and that’s it!
Joking… there is something more. We have to use a Redis database instead of the in-memory one.
7. Using Redis as a vector DB
First, we have to spin up a Redis vector database that we can work with.
We used Docker and attached a Redis image as a service in a docker-compose file along with the Superlinked poller and executor (which comprise the Superlinked server):
version: "3"
services:
poller:
...
executor:
...
redis:
image: redis/redis-stack:latest
ports:
- "6379:6379"
- "8001:8001"
volumes:
- redis-data:/data
volumes:
redis-data:Now, Superlinked makes everything easy. The last step is to define a RedisVectorDatabase connector provided by Superlinked:
vector_database = RedisVectorDatabase(
settings.REDIS_HOSTNAME,
settings.REDIS_PORT
)…and swap it in the executor with the InMemoryVectorDatabase() one:
executor = RestExecutor(
...
vector_database=vector_database,
)Now we are done!
Conclusion
Congratulations! You learned to write advanced RAG systems using Superlinked.
More concretely, in Lesson 11, you learned:
what is Superlinked;
how to design a streaming pipeline using Bytewax;
how to design a RAG server using Superlinked;
how to take a standard RAG feature pipeline and refactor it using Superlinked;
how to split the feature pipeline into 2 services, one that reads in real-time messages from RabbitMQ and one that chunks, embeds, and stores the data to a vector DB;
how to use a Redis vector DB.
Lesson 12 will teach you how to implement multi-index queries to optimize the RAG retrieval layer further.
🔗 Check out the code on GitHub [1] and support us with a ⭐️
Next Steps
Step 1
This is just the short version of Lesson 11 on building scalable RAG ingestion pipelines.
→ For…
The full implementation.
Full deep dive into the code.
More on the RAG, Bytewax and Superlinked.
Check out the full version of Lesson 11 on our Medium publication. It’s still FREE:
Step 2
→ Consider checking out the LLM Twin GitHub repository and try it yourself 🫵
Nothing compares with getting your hands dirty and doing it yourself!
Images
If not otherwise stated, all images are created by the author.
